Bachmann Warship, Raising Body.

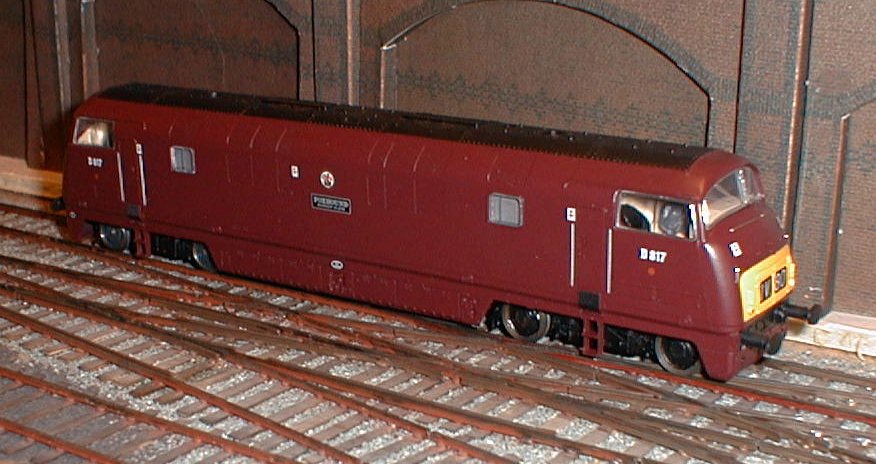

This photo shows the unusually low height of the loco as bought. The effect can also be seen in this view of the re-wheeled loco on the layout.

Measurements indicated that the body needed to be raised by 1.5mm to bring the buffers to the correct height. I decided to achieve this by fitting plasticard spacers under the clips which hold the bogies to the chassis. This cannot be done immediately as the design has cast in retaining ledges to stop the bogies falling out and these fit with close tolerances allowing no space for the spacers.

To fit the spacers, the retaining ledges were removed by a combination of grinding with the Dremel and filing. If care is taken to leave the strengthening ribs in place they will act as retainers at the new height without additional work. Re-assembly with the spacers in place completes this stage of the job. My Warship is now running happily around with the correct buffer height.

The following picture sequence should make this process clearer:

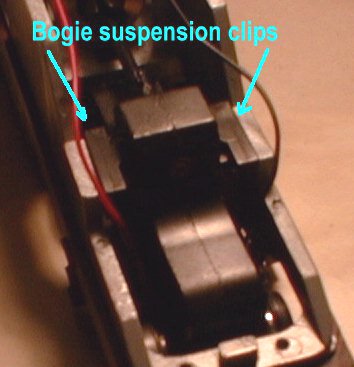

Bogie mounting as bought, clips in place.

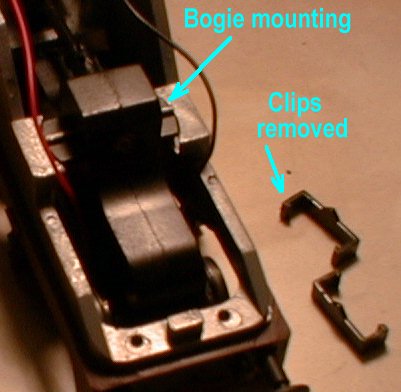

Bogie mounting with clips removed.

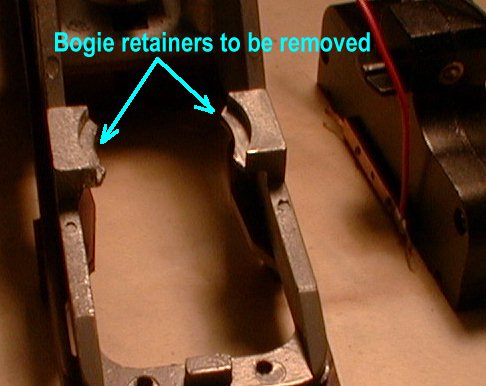

Chassis showing retaining ledges to be removed.

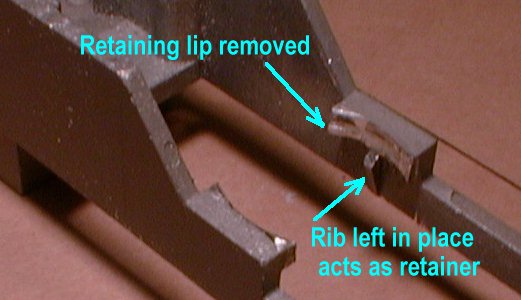

Chassis showing effect of removing retaining ledges, rib remains as retainer.

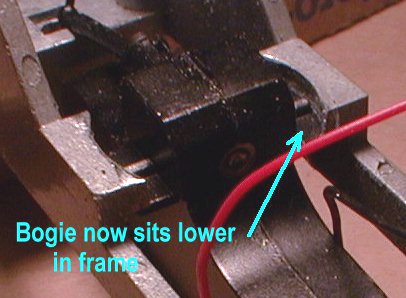

Bogie now sits lower leaving room for spacers, compare with photo-2.

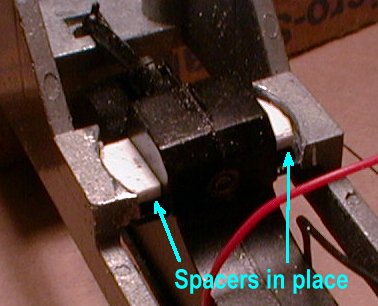

Spacers dropped in place.

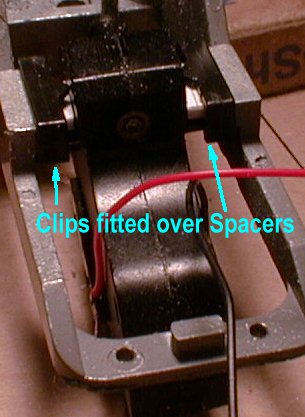

Clips replaced to hold bogie, compare with photo-1.

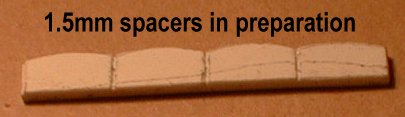

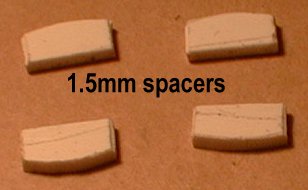

Spacers in preparation.

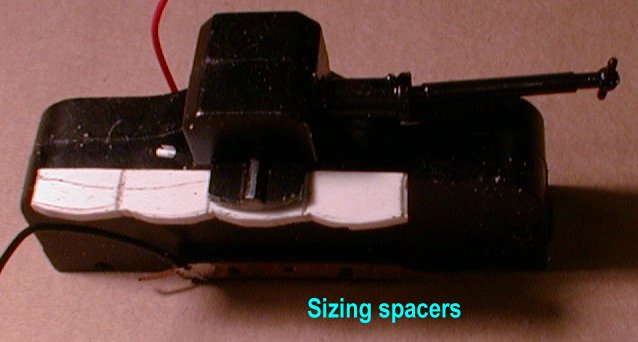

Checking spacer size, note:- spacers are most easily marked out below mounting lug as shown, but need another 0.5mm removing to fit above the lug as needed, the gearbox casting is a bit thicker above the lugs.


Complete spacers.

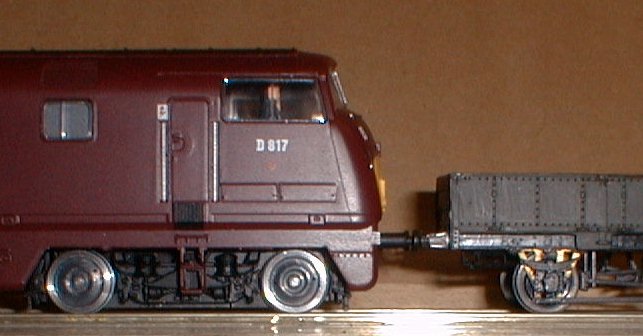

The end result when re-assembled, compare with War-7as.jpg (5872 bytes)

All in all, not so bad as first thought.
