Wagon Couplings

These drawings show the standard dimensions for standard British hook and link couplers.

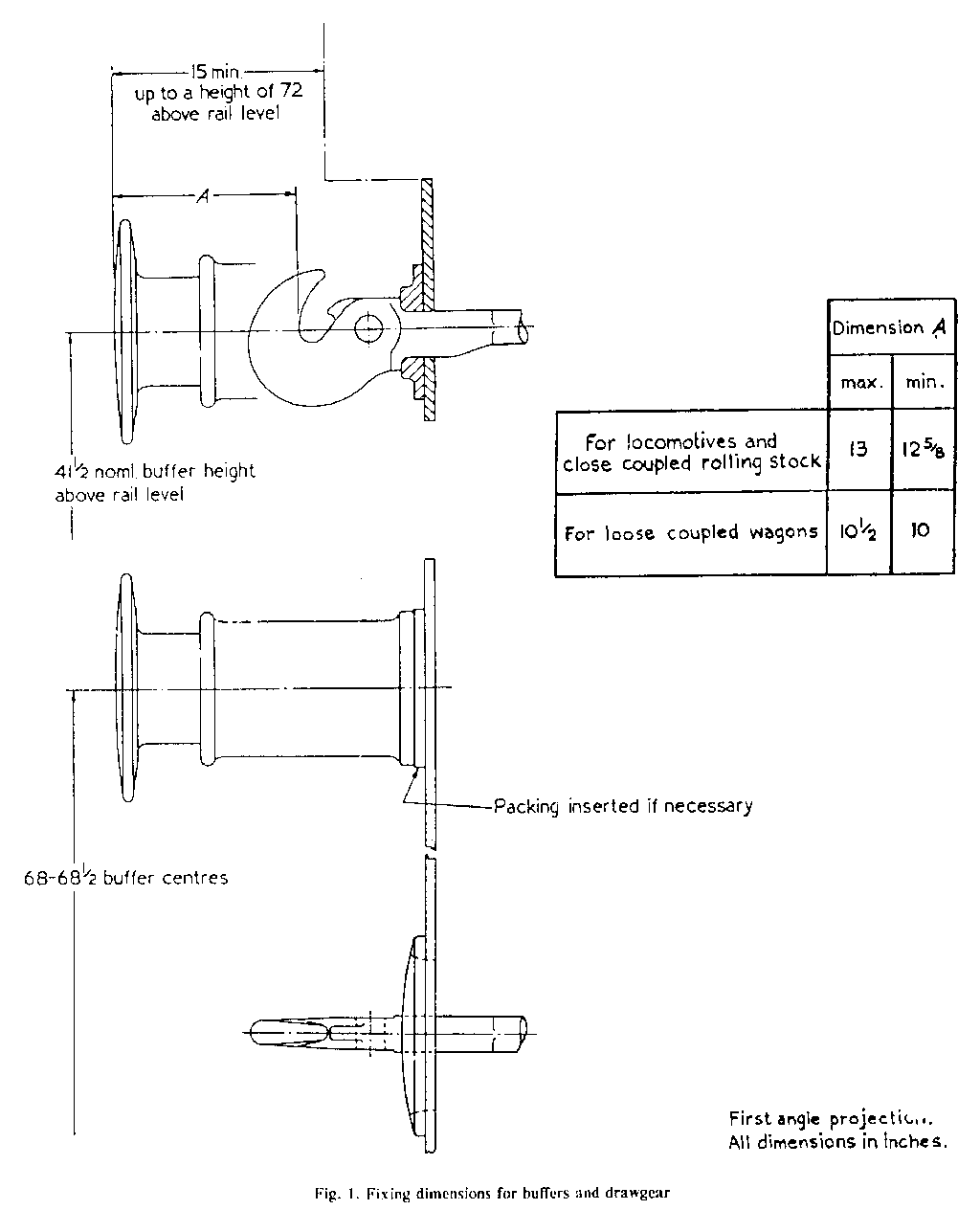

1.  Fixing dimensions for buffers and drawgear

2.  Three link coupling

3.  Screw coupling

4.  Three link coupling: Instanter type.
